Micro Drill Bit Set Guide: How to Drill Tiny Holes in Resin Miniatures
July 31, 2026
Tiny holes are easy to enlarge and difficult to undo. On a resin miniature, model part, bead, or other small craft piece, a full-size power drill can remove material faster than the workpiece allows. A micro drill bit set paired with a hand-powered pin vise gives the user direct control over alignment, pressure, and each turn of the bit.

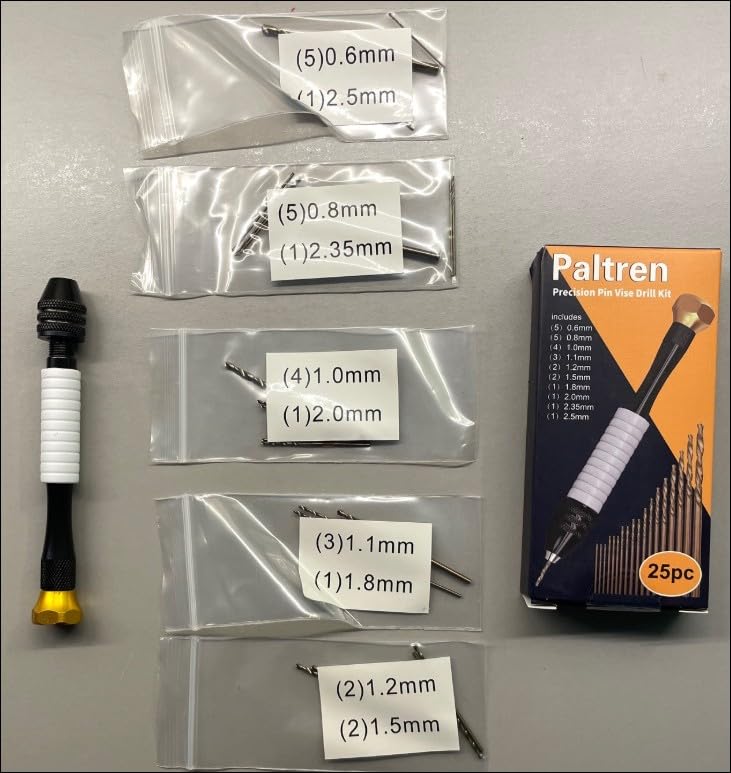

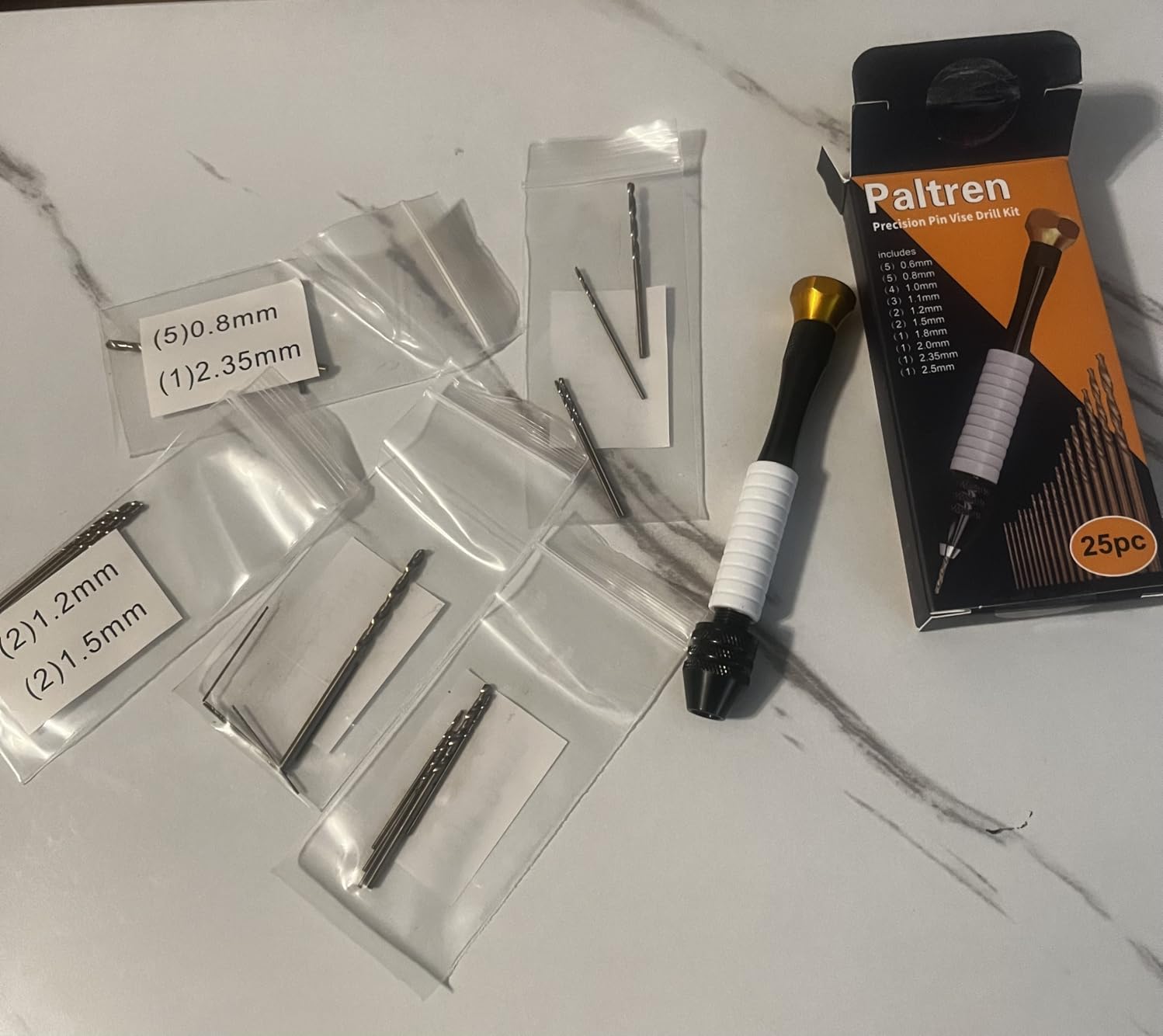

The Paltren Pin Vise Hand Drill Set includes a manual holder and 25 micro drill bits. That combination is intended for careful, small-scale drilling where a compact tool is easier to guide than a powered drill. The steps below focus on setup and technique rather than speed.
Why a Micro Drill Bit Set Fits Delicate Model Work
Small parts create two challenges: there is little room to correct an off-center start, and thin drill bits can be damaged by sideways force. A manual pin vise slows the operation down. That is useful when placing holes for miniature assembly pins, opening a pilot hole, or preparing a path for fine wire.
The 25-bit selection also lets you begin with a smaller pilot hole and move up gradually when the project calls for a wider opening. Avoid assuming every material behaves the same way; scrap material is the safest place to check fit and technique before working on the finished piece.
How to Start a Tiny Hole Without Letting the Bit Wander
- Mark the center. Use a fine pencil mark or another material-appropriate marking method. Confirm the location from more than one angle.
- Secure the part. Support the workpiece so it cannot rotate with the drill. Do not hold a sharp or brittle piece in a position that puts fingers behind the drilling point.
- Choose a pilot bit. Start smaller than the final hole when the material and project permit. Seat the bit straight in the pin vise.
- Begin with light turns. Keep the tool aligned with the planned hole and rotate without forcing it. Let the cutting edge establish a shallow track.
- Clear debris often. Withdraw the bit carefully so chips do not pack into the hole. Recheck alignment before continuing.
A pin vise hand drill does not eliminate the need for care. It simply makes small movements easier to control. If the bit starts to bow, stop and correct the cause instead of adding pressure.
Using Small Drill Bits Without Adding Side Load
The main technique is to keep force in line with the bit. Twisting the handle while pushing sideways can stress a fine bit and distort the hole. Short, controlled turns are more appropriate than trying to copy the speed of an electric drill.
Depth matters too. For a blind hole, mark the intended depth on the bit with a removable visual reference that will not interfere with the work. For a through-hole, support the exit side when possible and reduce pressure as the tip approaches the far surface.
Common Mistakes When Drilling Resin Miniatures
- Skipping the pilot hole: a large bit is more likely to wander at the start.
- Using the bit as a lever: widening a hole by bending the tool adds avoidable side force.
- Ignoring material dust: use ventilation and suitable personal protection for the material being drilled, and follow its maker’s handling guidance.
- Drilling before checking alignment: dry-fit the parts and confirm the pin or wire path first.
- Rushing debris removal: packed chips can increase resistance and hide what the cutting edge is doing.
When a Manual Drill Is the Better Choice
A manual drill is a practical option when the hole is small, the part is delicate, and control matters more than speed. It is also convenient for a desk or hobby bench because it does not need power. Larger holes, hard materials, or production work may call for different equipment; match the tool to the material and task rather than forcing one setup to do everything.
For miniature builders, jewelry makers, and craft users who need a compact set for pilot holes and detail work, the Paltren micro drill bit set keeps a pin vise and 25 bits together in one product.
